Interoperability: the invisible art of connecting data, systems, and People

There's an idea that is repeated in almost any data initiative: "if we connect different sources, we'll get more value". And it is usually true. The nuance is that value appears when we can combine data without friction, without misunderstandings and without surprises. The Public Sector Data reuser´s decalogue sums it up nicely: interoperability is especially critical just when we're trying to mix data from a variety of sources, which is where open data tends to bring the most in.

In practice, interoperability is not just "that there is an API" or "that the file is downloadable". It is a broader concept, with several layers: if we only take care of one, the others end up breaking the reuse. We connect... But we don't understand what each field means. We understand... but there is no stability or versioning. There is stability... but there is no common process for resolving incidents. And, even with all of the above, clear rules of use may be lacking. For this reason, it is also a mistake to think that interoperability is a purely computer problem that can be fixed by "buying the right software": technology is only the tip of the iceberg. If we want data to truly flow between public administration, business and research centres, we need a holistic vision.

And here is the good news: it can be tackled incrementally, step by step. To do it well, the first thing is to clarify what type of interoperability we are looking for in each case, because not all barriers are technical or solved in the same way.

In this post we are going to break down the different types of interoperability, to identify what each one brings and what fails when we leave it out.

The different types of interoperability

Following the European Interoperability Framework (EIF), it is convenient to think of interoperability as a building with four main layers: technical, semantic, organisational and legal. If one fails, the whole suffers.

We then unify the four layers with a data-centric approach, including examples applied to different industries.

1. Technical interoperability: systems can exchange data

It is the "visible" layer: infrastructures, protocols and mechanisms to reliably send/receive data.

But what does it mean in practice?

• Machine-readable formats: such as CSV, JSON, XML, RDF, avoiding human-readable documents only (such as PDF).

• Stable APIs and endpoints: with documentation, authentication when applicable, and versioning.

• Non-functional requirements: availability, performance, security and technical traceability.

What are the typical errors or failures that generate problems?

In the specific case of technical interoperability, these issues mainly arise from ‘silent’ changes, for example, columns and/or structure being altered and breaking integrations, or the presence of non‑persistent URLs, APIs without versioning, or lacking documentation.

Example: let's land it in a specific case for the mobility domain

Let's imagine that a city council publishes in real time the occupancy of parking lots. If the API changes the name of a field or the endpoint without warning, the  navigation apps stop showing available spaces, even if "the data exists". The problem is technical: there is a lack of stability, versioning, and interface contract.

2. Semantic interoperability: they also understand each other

If technical interoperability is "the pipes", semantics is the language. We can have perfectly connected systems and still get disastrous results if each part interprets the data differently.

But what does it mean in practice?

• Glossaries of clear terms: definition of each field, unit, format, range, business rules, granularity, and examples.

• Controlled vocabularies , taxonomies, and ontologies for unambiguous classification and encoding of values.

• Unique identifiers and standardised references through reference data with official codes, common catalogues, etc.

What are the typical errors or failures that generate problems?

These issues usually arise when there is ambiguity (for example, if it only says ‘date’, we don’t know whether it refers to the registration date, publication date, or effective date), different units (for example, the unit of measurement of the data is not known: kWh vs MWh, euros vs thousands of euros), incompatible codes (M/F vs 1/2 vs male/female) or even changes in meaning in historical series without explaining it.

Example: let's land it on a specific case in the energy sector

An administration publishes data on electricity consumption by building. A reuser crosses this data with another regional dataset, but one is in kWh and the other in MWh, or one measures "final" consumption and the other "gross". The crossing "fits" technically, but the conclusions go wrong because there is a lack of semantics: definitions and shared units.

3. Organisational interoperability: processes must maintain consistency

Here we talk less about systems and more about people, responsibilities and processes. Data doesn't stand on its own: it's published, updated, corrected, and explained because there's an organization behind it that makes it possible.

But what does it mean in practice?

• Clear roles and responsibilities: who defines, who validates, who publishes, who maintains and who responds to incidents.

• Change management: what is a major/minor change, how it is versioned, how it is communicated, and whether the history is preserved.

• Incident management: single channel, response times, prioritization, traceability and closure.

• Operational commitments (such as service level agreements or SLAs): update frequency, maintenance windows, quality criteria and periodic reviews.

Here, for example, the UNE specifications on data governance and management can  help us, where the keys to establishing organisational models, roles, management processes and continuous improvement are given. Therefore, they fit precisely into this layer: they help to ensure that publishing and sharing data does not depend on the "heroic effort" of a team, but on a stable way of working in which the team matures.

What are the typical errors or failures that generate problems?

The classics: "each unit publishes in its own way", there is no clear responsible, there is no circuit to correct errors, it is updated without warning, it is not preserved historical or the feedback of the reuser is lost in a generic mailbox without tracking.

Example: let's land it in a specific case in the environment

A confederation publishes water quality data and several units provide measurements. Without a common validation process, a coordinated schedule, and an incident channel, the dataset begins to have inconsistent values, gaps, and late corrections. The problem is not the API or the format: it is organizational, because maintenance is not governed.

4. Legal interoperability: that the exchange is viable and compliant

This is the layer that makes the exchange secure and scalable. You can have perfect data at a technical, semantic and organizational level... and even so, not being able to reuse them if there is no legal clarity.

But what does it mean in practice?

• Clear license and terms of use: attribution, redistribution, commercial use, obligations, etc.

• Compatibility between licenses when mixing sources: avoiding unfeasible combinations.

• Data protection compliance: such as the General Data Protection Regulation (GDPR), intellectual property, trade secrets or industry boundaries.

• Explicit rules on what can and cannot be done: also indicating with what requirements).

What are the typical errors or failures that generate problems?

The classic "jungle": absent or ambiguous licenses, contradictory conditions between datasets, doubts about whether there is personal data or risk of re-identification, or restrictions that are discovered when the project is already advanced.

Example: let's land it in a specific case in culture and heritage

A public archive publishes images and metadata from a collection. Technically everything is fine, and the metadata is rich, but the license is confusing or incompatible with other data that you want to cross (for example, a private repository with restrictions). Result: a company or a university decides not to reuse due to legal uncertainty. The blockade is not technical: it is legal.

In short, interoperability works as a "pack" of four layers: connect (technical), understand the same (semantics), maintain it in a sustained way (organizational) and be able to reuse without risk (legal).

For a quick overview with real-world examples, the following infographic summarizes how each layer is implemented across different sectors (standards, models, practices, and regulatory frameworks) and which components are typically used as references in each case.

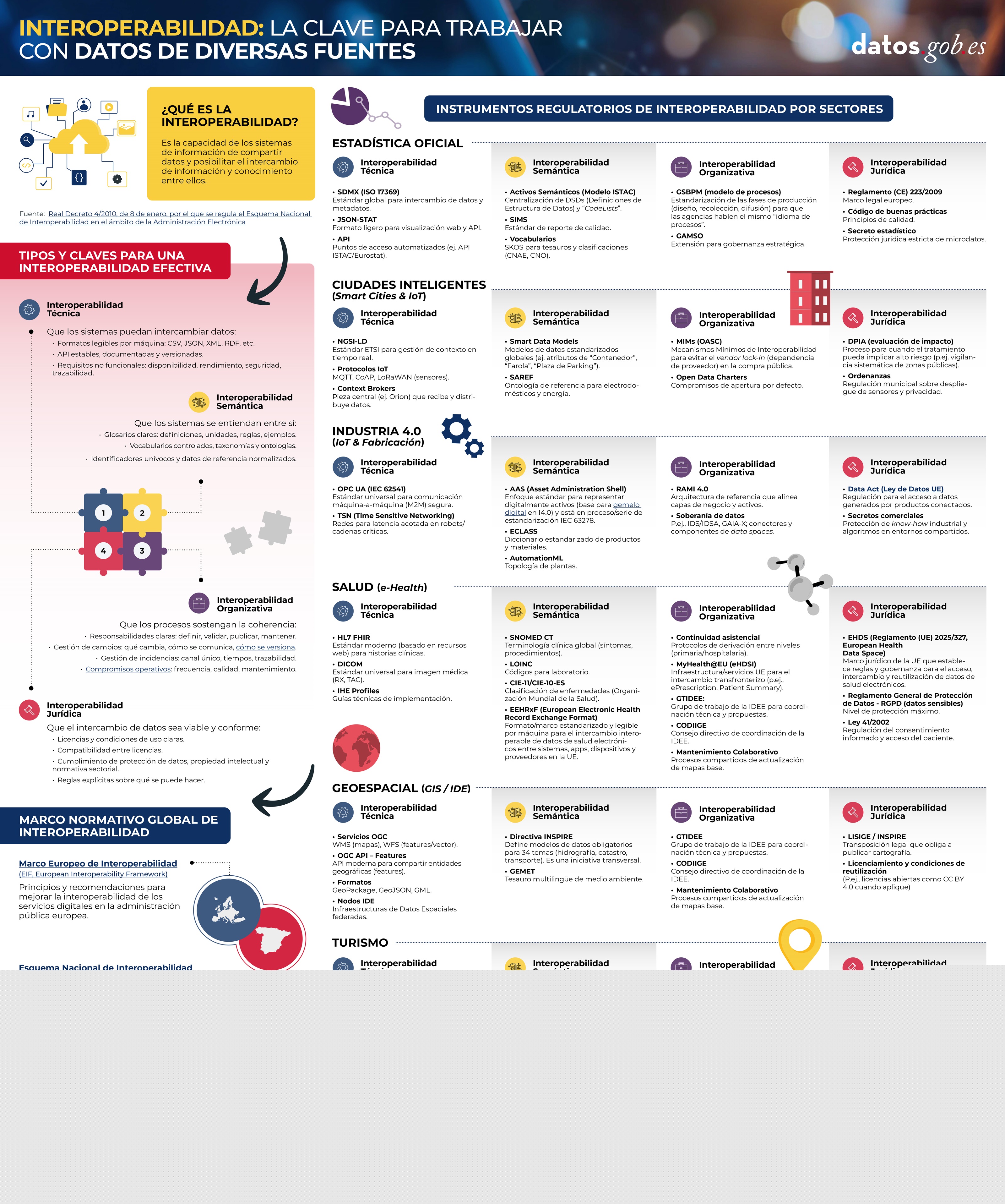

Figure 1. Infographic: “Interoperability: the key to working with data from diverse sources”. An accessible version is available here. Source: own elaboration - datos.gob.es.

The infographic above makes a clear idea: interoperability does not depend on a single decision, but on combining standards, agreements and rules that change according to the sector. From here, it makes sense to go down one level and see what references and tools are used in Spain and in Europe so that these four layers (technical, semantic, organisational and legal) do not remain in theory.

A practical reference in Spain: NTI-RISP (and why it makes sense to cite it)

In the Spanish context, the NTI‑RISP is a very useful guide because it clearly lays out what needs to be taken care of when publishing information so that others can reuse it: identification, description (metadata), formats, and terms of use, among other aspects.

Metadata as glue: DCAT-AP and DCAT-AP-ES

In open data, the place where interoperability is most noticeable in everyday practice is in catalogs: if datasets are not described consistently, they become harder to find, understand, and federate.

• DCAT-AP provides a common metadata model for data catalogues in Europe, based on widely reused vocabularies.

• In Spain, DCAT-AP-ES is promoted precisely to reinforce the interoperability of catalogues with a common profile that facilitates exchange and federation between portals.

How to approach interoperability without dying of ambition

Rather than "fixing it all at once," it often works better to treat interoperability as continuous improvement because it breaks down with changes in technology, organization, or regulation. A simple and realistic approach:

1. Start with the "why": Do you want to integrate into a service, cross for analysis, build comparable indicators, enrich entities...? The objective determines the level of rigor required.

2. It ensures the minimum level of stability: machine-readable access and formats, persistent identifiers, minimal documentation, and some versioning (even if it is basic). This prevents "useful today" datasets that break tomorrow.

3. Apply semantics where it hurts (Pareto principle: 80/20 - states that 80% of the results come from 20% of the causes or actions-): define very well the critical fields (those that intersect/filter), units, code tables and the exact meaning of dates/states. You don't need to "model it all" to reduce most errors.

4. Put minimum operating agreements: who maintains, when it is updated, how incidents are reported, how changes are announced, and if the history is preserved. This is where a data governance approach (and guidelines like NTI-RISP) makes the difference between "published dataset" and "sustainable dataset".

5. Pilot with a real crossover: a small pilot quickly detects whether the problem was technical, semantic, organizational or legal, and gives you a specific list of frictions to eliminate.

In conclusion, interoperability is not simply "having an API": it is the result of aligning four layers – technical, semantic, organizational and legal – to be able to combine data without friction, without misunderstandings and with security. Each layer solves a different problem: the technical one avoids integration breaks, the semantic one avoids misinterpretations, the organizational one makes publication and maintenance sustainable over time, and the legal one eliminates the uncertainty about what can be done with the data.

In this context, sectoral frameworks and standards act as practical shortcuts to accelerate agreements and reduce ambiguity, and that is why it is useful to see examples by sector. In addition, interoperable metadata and catalogs are a real multiplier: When a dataset is well described, it is found more quickly, better understood, and can be federated at lower cost. Finally, an incremental and measurable approach is usually most effective: start with the "why", ensure technical stability, reinforce critical semantics (80/20), formalize minimum operational agreements and validate with a real crossover, instead of trying to "solve interoperability" as a single closed project.

Content created by Dr. Fernando Gualo, Professor at UCLM and Government and Data Quality Consultant. The content and views expressed in this publication are the sole responsibility of the author.
